Product Description:

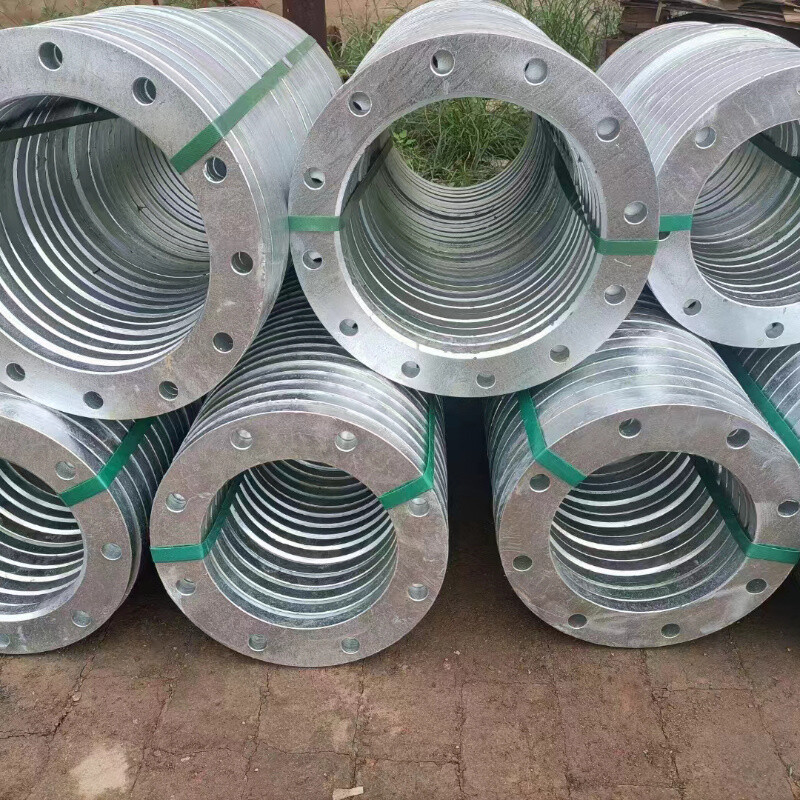

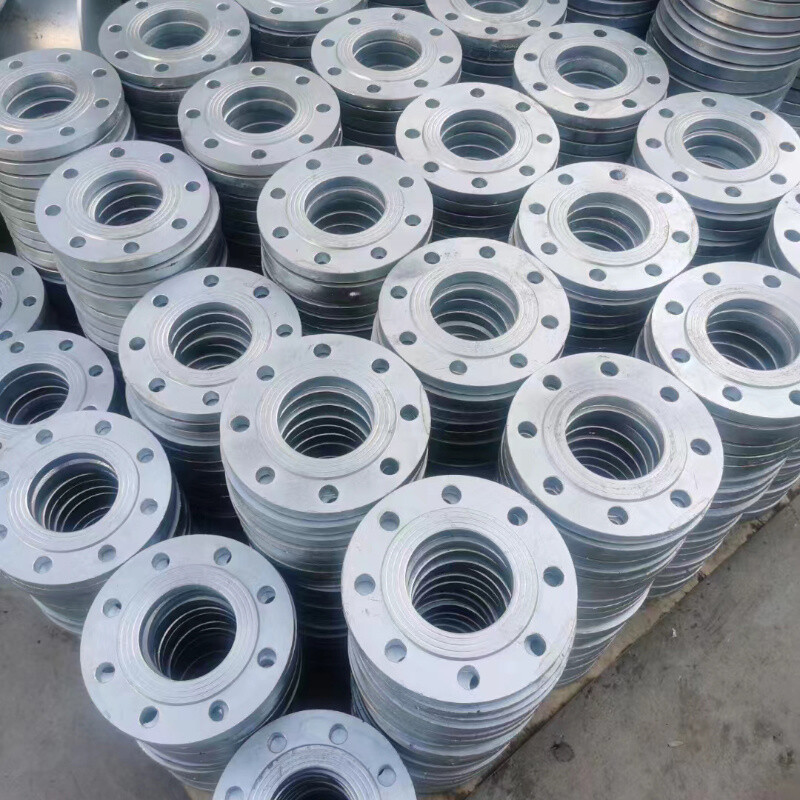

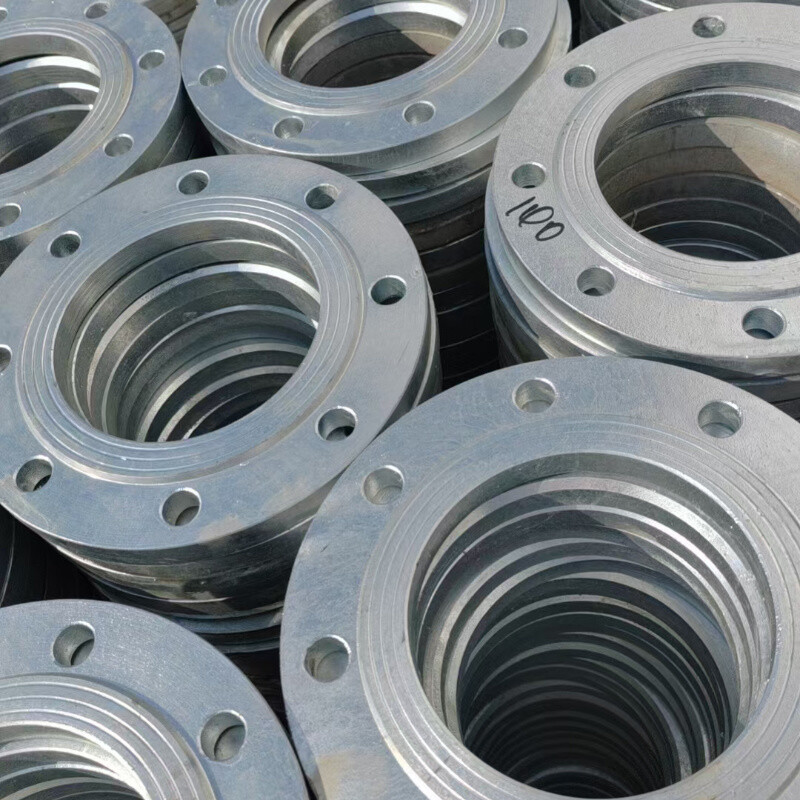

Product nameGalvanized flange
Product BrandSTEEL FITING
MaterialA105、Q345E、Q235、
SpecificationsDN10-2000 to map custom
UseApplication of chemical, power plant, construction, fire, municipal, drinking water, sewage and other pipeline connections


Table 8.2.1-4 PN16 Plate Flat Welded Steel Pipe Flanges (mm)
Nominal
Dimensions
DN
Outer diameter of steel pipe
A₁
Connection dimensionsFlange
Thickness
C
Flange inner diameter
B₁
Groove
Width
b
Flange
Outer diameter
D
Bolt hole
Central circle diameter
K
bolt hole
Diameter
L
bolt hole
Quantity
n (number)
Bolt
Th
ABAB
10172149060144M121418154
1521.3189565144M121422.5194
2026.92510575144M121627.5264
2533.73211585144M121634.5335
3242.438140100184M161843.5395
4048.345150110184M161849.5465
5060.357165125184M161961.5595
6576.176185145188M162077.5786
8088.989200160188M162090.5916
100114.3108220180188M16221161106
125139.7133250210188M1622143.51356
150168.3159285240228M2024170.51616
200219.12193402952212M2026221.52228
2502732734053552612M2429276.527610
3003,2393254604102612M243232832811
350355.63775204702616M243536038112
400406.44265805253016M273841143012
4504574806405853020M274246248512
5005085307156503320M3046513.553512
6006106308407703320M3052616.563612
