Product Details

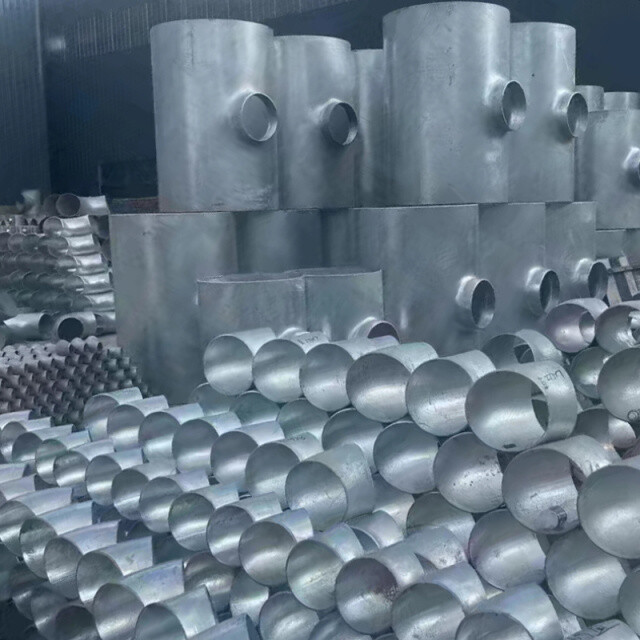

Galvanized tee is a kind of pipe connector, which is used to connect pipes in three directions. It is widely used in power plants, construction, chemical industry, municipal administration, drinking water sewage pipe connection and other fields. Its length can be customized according to demand, the common have up to several meters of specifications. Galvanizing treatment makes the tee more corrosion resistant and can be used for a long time in humid, acid and alkali environments. In addition, the galvanized tee is easy to install and easy to maintain, which can ensure the stability and safety of the pipeline system. Its length depends on the application scenario, if you need a specific length, the market also has a variety of specifications to choose from. In short, the galvanized tee plays an important role in the pipeline connection to ensure the smooth operation of the pipeline system.

Product Parameters
Product Name	Tee (equal diameter tee and reducing tee)
Product Brand	STEEL FITING
Executive standards	GB/T12459 、 ASME B16.9 、 ASMEMSSSP75
Material	A234WPB, WPC, P91, 15crMOV, SS304H, SS31603, 321H, etc
Specifications	DN10-2000mm to map custom
Use	Application of power plant, construction, chemical, municipal, drinking water sewage pipe connection

Technical parameters

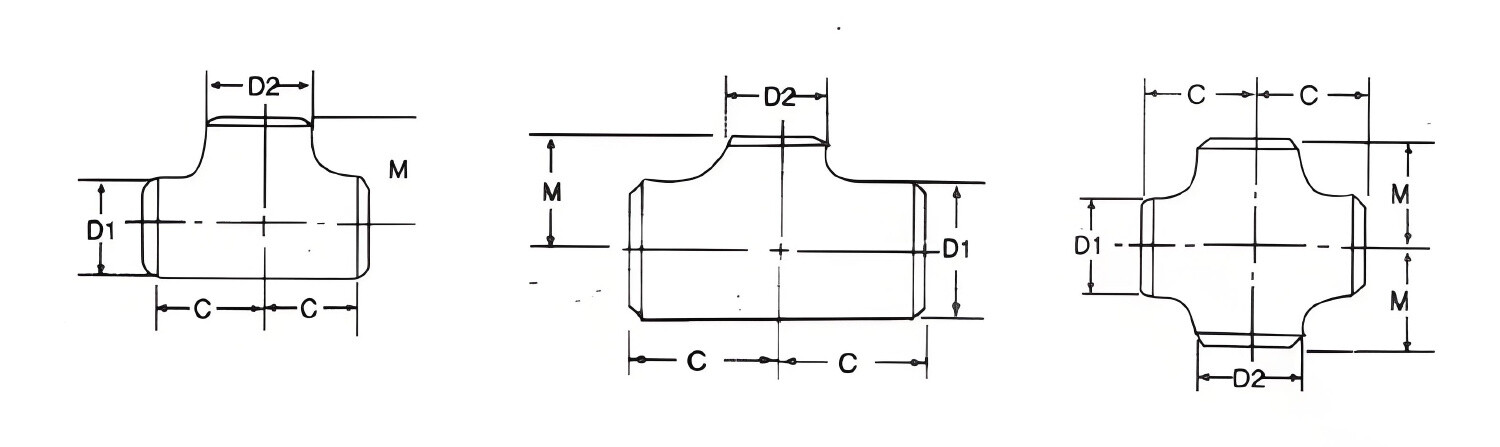

Tee, four-way (same diameter, reducing diameter) TEES AND CROSSES
male you diameter Nominal Diameter	Outer diameter Outside Diameter		Center to End Center To end		male diameter Nominal Diamclcr	Outer diameter Outside Diameter		Center to Item Face Center To end
mm	In	D1 × D2	C	M	mm	In	D1 × D2	C	M
20 × 20	3/4 × 3/4	25x25 26.7 × 26.7	29	29	350 × 350	14x14	377 × 377 35S.6 × 35S.6	279	279
20x1S	3/4xl/2	25x20 26.7 × 21.3	29	29
					350 × 200	14x8	377 × 219 355.6 × 219.1	279	248
25 × 25	1xl	32 × 32 33.4 × 33.4	38	38
					400 × 400	16x16	426x426 405.4 × 406.4	305	305
25 × 20	1 × 3/4	32 × 25 33.4 × 26.7	38	38
					400 × 250	16 × 10	426 × 273 406.4 × 273.1	30S	283
32 × 32	1.1/4 × 1.1/4	38 × 38 42.2 × 42,2	48	48
					450 × 450	18x18	478x478 457x457	343	343
32 × 25	1.1/4x1	38 × 32 42,2 × 33.4	48	48
					450 × 250	18x10	478x273 457 × 273.1	343	308
40x40	1.1/2x1.1/2	45x45 48.3 × 48.3	57	57
					500 × 500	20 × 20	529 × 529 508 × 508	381	381
40 × 25	1.1/2x1	45x32 48.3 × 33.4	57	57
					500 × 300	20 x 12	529x325 505 × 323.9	381	346
50x50	2 x 2	57x57 60.3 × 60.3	64	64
					550 × 550	22 × 22	559 × 559	419	419
50x25	2x1	57 × 32 60.3 × 33.4	64	51
					550 × 400	22 × 16	559 × 406.4	419	381
65x65	2.1/2x2.1/2	76 × 76 73 × 73	76	76	600x600	24 × 2A	630 × 630 610 × 610	32	432
65x40	2.1/2x1.1/2	76 × 45 73.0x48.3	76	67	600 × 400	24x16	630x426 610x406.4	432	406
80 x 80	3 × 3	89x89	86	86	650x650	26 × 26	660x660	495	495
80x50	3 x 2	89x57 88.9x60.3	86	76	700 × 700	28 × 28	720 × 720 711 × 4064	521	521
100x100	4x4	108x108 114.3 × 114.3	105	105	700x400	28 × 16	720 × 426 711 × 4064	521	457
100 × 50	4 × 2	108x57 114.3 × 60.3	105	89
					750 × 750	30 x 30	762 × 762	559	559
125 × 125	Sx5	133 × 133 141.3 × 141.3	124	124	750 × 500	30 x 20	762 × 50S	559	508
					800x800	32 × 32	820x820 813 × 813	597	597
125x80	5x3	133 × 89 141.3 × 88.9	124	111
					800 × 500	32 × 20	820 × 529 813 × 508	597	533
150x150	6x6	159x1S9 168.3 × 168.3	143	143
					850 × 850	34 x 34	864 × 864	635	635
150x100	6xA	159 × 108 168.3 × 114.3	143	130
					850x600	34 × 2A	864 × 610	635	584
200 × 200	8 × 8	219 × 219	178	178
					900 × 900	36 × 36	920 × 920 914 × 914	673	673
200 × 100	8x4	219 × 108 219.1 × 114.3	178	156
					900 × 500	36 × 20	920 × 829 914 × 508	673	584
250 × 250	10 × 10	273 × 273	216	216
					950 × 9S0	38 × 38	965 × 96S	711	711
250 × 125	10x5	273 × 133 273.1 × 141.3	216	191
					950x600	38 × 2A	965 × 610	711	635
300 × 300	12 × 12	325 × 325 323.9 × 323.9	254	254
					100 × 1000	40 × 40	1020 × 1020 1016x1016	749	749
300 × 200	12 × 8	325 × 219 323.9x219.1	254	229
					1100 × 700	44 × 28	1120 × 720 1118 × 711	813	698

					1150 × 1150	46 × 46	1168 × 1168	851	800

					1150 × 800	46 × 32	1168 × 813	851	749

					1200 × 1200	46 × 48	1220 × 1220 1219 × 1219	889	838

					1200 × 650	48 × 26	1219 × 660	889	762
Note: The user has special requirements for the groove form, which can be processed according to the agreement reached between the user and the manufacturer.

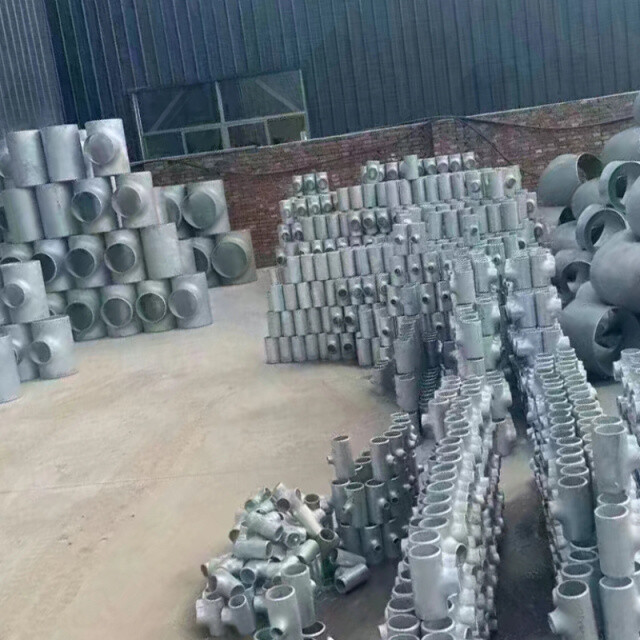

Factory production

About Reignwood Metal

Jiangsu Huabin Metal Technology Co., Ltd. is a high-tech enterprise focusing on the production and processing of metal materials. Its main products include stainless steel coils, galvanized sheets, flanges, tees and various steel products. The company has advanced production lines and testing equipment to ensure stable and reliable product quality. With many years of industry experience, Huabin Metal has established a complete sales network. Its products are widely used in construction, chemical, petroleum, machinery manufacturing and other fields, and are exported to domestic and foreign markets. The company adheres to the business philosophy of "quality first, customer first", is committed to providing customers with high-quality products and services, and constantly promoting the innovative development of the metal materials industry.
